Training Loop Profiler #97
Conversation
Closes #11 This PR helps clean up some of the tests, rank zero callbacks, and will be used by future profiling work.
#65 made the global rank available in the process start, so it is no longer necessarry to wait until training_start() to create the dataloader. Instead, dataloaders are now initialized in __init__. This change will help with dataloader profiling, as now the dataloader will be immediately bound to the state.
2. Renamed the `MosaicProfiler` to `Profiler`
The pytorch profiler uses `os.getpid()` for the thread id. Updating the training loop profiler to be consistent so the events will interleave. Updated the merge script to replace the PID with the global rank. This ensures that GPU streams will show up under the correct rank, since pytorch by default uses the local GPU rank as the PID. This change also ensures that traces will merge properly across nodes where PIDs could conflict.
|
Tried running as follows with the torch profiler disabled: Getting the following error:
Works fine if the torch profiler is enabled. |
|
Confirmed that the dataloader error @bandish-shah saw is an issue with the Pytorch dataloader. I suspect that we hit it with the profiler as we aren't spinning the dataloaders as long. See pytorch/pytorch#1551 (comment). |
…aicml#105) Before mosaicml#65, composer.trainer.ddp ensured that DDP functionality was accessed only after ddp was initialized. Now, DDP is available from process start, so this class is no longer needed. Moved all the functionality from this class to the global composer.utils.ddp. This change allows callbacks, algorithms, etc... to use DDP (such as barriers and reductions) as needed. mosaicml#97 and mosaicml#101 depend on this functionality. Also removed DDP from the state, as that is available globally.
* Added `run_event` to callback Closes #11 This PR helps clean up some of the tests, rank zero callbacks, and will be used by future profiling work. * Removed callback helper methods * Fixed tests * Formatting * Addressed PR feedback * Fixed tests * Formatting * Fixed _run_event * Formatting * Removed ip * Instrumentation WIP * Stash * Create dataloader on trainer __init__() mosaicml#65 made the global rank available in the process start, so it is no longer necessarry to wait until training_start() to create the dataloader. Instead, dataloaders are now initialized in __init__. This change will help with dataloader profiling, as now the dataloader will be immediately bound to the state. * Stash * Added JSON trace handler * Formatting * Fixed trace generation * Prettified memory * Fixed setup.py * Changed setup.py * testing * Removed prepare * Run Directory Uploader Added uploading of the run directory to various cloud providers via a callback. Depends on the LibCloud plugin. Closes mosaicml#98. Depends on mosaicml#85 and (for tests) mosaicml#92. * Supporting both styles for callbacks Removed deferred logging since rank is now known at the init event * Minimizing Diff * Fixed tests * Added fasteners * Fixed tests * Formatting * Lazy population of kwargs * 1. Added object_name_prefix 2. Tested on google cloud storage 3. Added exponential backoff and retrying for transient errors * Addressed PR feedback * Remove the composer.trainer.ddp class Before mosaicml#65, composer.trainer.ddp ensured that DDP functionality was accessed only after ddp was initialized. Now, DDP is available from process start, so this class is no longer needed. Moved all the functionality from this class to the global composer.utils.ddp. This change allows callbacks, algroithms, etc... to use DDP (such as barriers and reductions) as needed. mosaicml#97 and mosaicml#101 depend on this functionality. Also removed DDP from the state, as that is available globally. * Added in DDP barrier * Fixed tests * Update composer/utils/ddp.py * Update composer/utils/ddp.py * Switched tqdm to using callback hooks Added test case for TQDM * Fixed pyright * Fixed DDP barriers * Increased timeout for run directory uploader * Switched callback format for run directory uploader * Replaced `atexit` with cleanup methods When running the trainer multiple times, such as in interactive enviroments, `atexit` does not fire. Instead, replaced it with `.close()` and `.post_close()` hooks on callbacks. `.close()` can be used to write and flush files. `.post_close()` can be used to backup the run directory and capture any changes that may have been made on `.close()` * Uncommented code * Running callbacks befor algorithms for the INIT event in the engine * For the INIT event, run the callbacks first to initialize the loggers. * For other events, run the algorithms first, so the callbacks have the state after algorithms modify it. * Fixed tests * Addressed PR feedback * Added in the scheduler * Added instant events * Fixes * Fixed profile scheduling * Added decorator option * Formatting * Added documentation for the profiler * 1. Added test cases 2. Fixed trace files to be proper json on successful training runs * Profiler entry point * Ravi/instrumentation point (mosaicml#140) 1. Using `os.getpid()` for process IDs to enable synchronization with the pytorch profiler 2. Switched to using object format instead of array format for the traces 3. Added in extra metadata such as global rank and timestamps for clock syncing * Writing metadata to a seperate file * Fixed tests * Removed the perf counter * Recording IO stats * Log global rank in each torch profiler file * Merging process traces (mosaicml#144) * Refactor the system profiler and dataloader profiler into callbacks Configuring the pytorch profiler based off of the mosaic profiler hparams * 1. Updated the merge script to merge pytorch trace files 2. Renamed the `MosaicProfiler` to `Profiler` * Increased timeout * Formatting * Fixed the `run_mosaic_profiler` * Added detailed option * Added sort index * Setting `pid` to global rank and `tid` to `os.getpid()` The pytorch profiler uses `os.getpid()` for the thread id. Updating the training loop profiler to be consistent so the events will interleave. Updated the merge script to replace the PID with the global rank. This ensures that GPU streams will show up under the correct rank, since pytorch by default uses the local GPU rank as the PID. This change also ensures that traces will merge properly across nodes where PIDs could conflict. * Simplifying diff * Put the backwards thread second * Thread sorting in trace * Fix * Fixes * Fixed tests * Fixed the profiler * Fixes Co-authored-by: Jamie Bloxham <[email protected]> Co-authored-by: Bandish Shah <[email protected]> Co-authored-by: anisehsani <[email protected]>
The Training Loop Profiler gives a breakdown of how long is spent on each part of the training loop, and how long is spent on each algorithm and callback for each event. It is implemented through the engine and wraps calls around each event. It also can profile system performance metrics through
psutiland incorporates the pytorch profiler.TODO:

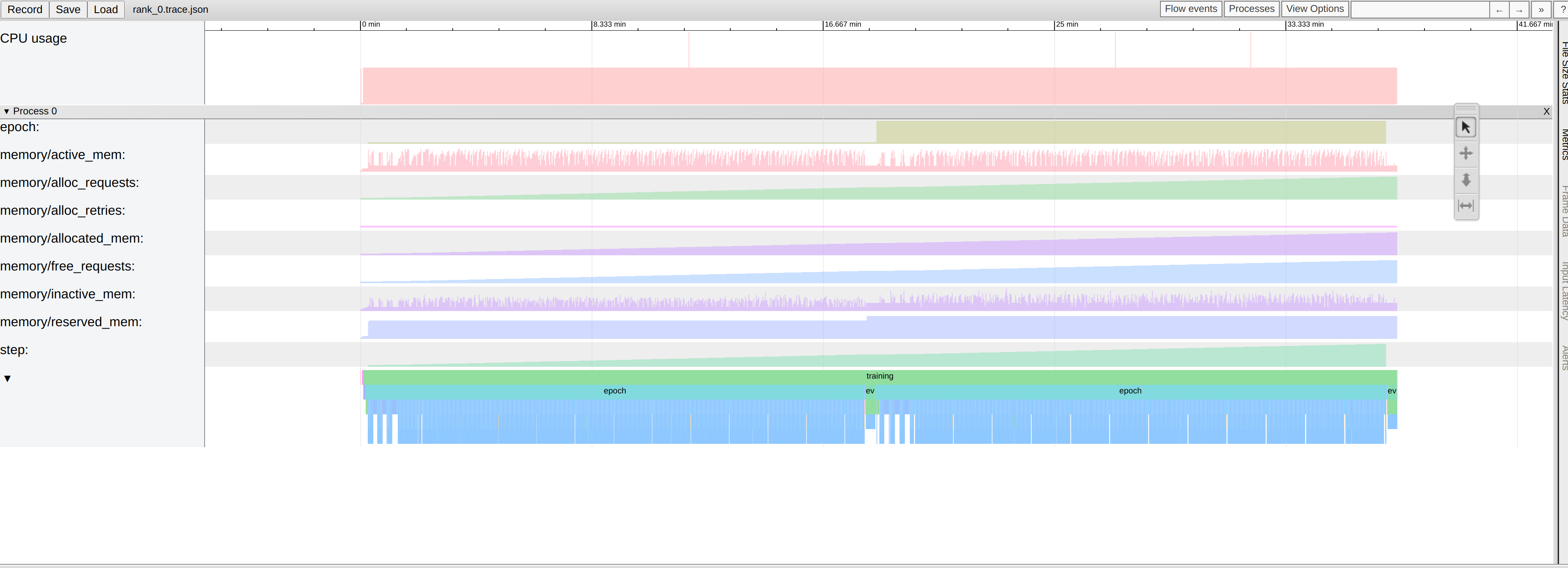

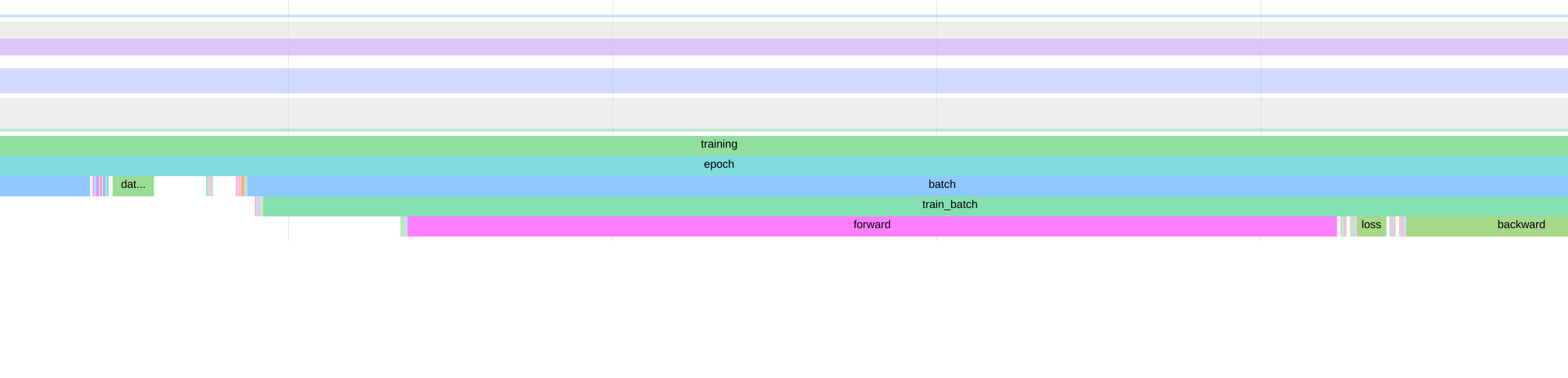

MosaicProfilerclass that supports markers for different segments of the codestart trace viewing web server. Automatically starting the trace viewer web server is more involved, as perfetto requires that you post the trace to their site. Will also need to think about automatically pulling traces from buckets.Examples of the visualization
