[Perf] Linux/x64: 3 Regressions on 10/4/2023 12:49:41 PM #22915
Description
Run Information
| Name | Value |
|---|---|
| Architecture | x64 |
| OS | ubuntu 22.04 |
| Queue | TigerUbuntu |
| Baseline | 1d352cb36c06a16bc93e424809fb431d5795e741 |
| Compare | 782c9d340dd2b69600049adbac714366a1634547 |
| Diff | Diff |
| Configs | CompilationMode:tiered, LLVM:false, MonoAOT:false, MonoInterpreter:true, RunKind:micro_mono |
Regressions in System.Numerics.Tests.Perf_Matrix4x4
| Benchmark | Baseline | Test | Test/Base | Test Quality | Edge Detector | Baseline IR | Compare IR | IR Ratio |
|---|---|---|---|---|---|---|---|---|
| 130.39 ns | 146.29 ns | 1.12 | 0.08 | False | ||||
| 78.11 ns | 83.91 ns | 1.07 | 0.08 | False | ||||
| 115.79 ns | 123.77 ns | 1.07 | 0.09 | False |
Repro
General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md
Repro Steps
Prerequisites (Build files either built locally or downloaded from payload above)
- Libraries build extracted to
runtime/artifactsor build instructions: Libraries README args:-subset libs+libs.tests -rc release -configuration Release -arch $RunArch -framework net8.0 - CoreCLR product build extracted to
runtime/artifacts/bin/coreclr/$RunOS.$RunArch.Release, build instructions: CoreCLR README args:-subset clr+libs -rc release -configuration Release -arch $RunArch -framework net8.0 - Mono Runtime build extracted to
runtime/artifacts/bin/mono/$RunOS.$RunArch.Release, build instructions: MONO README args:-arch $RunArch -os $RunOS -s mono+libs+host+packs -c Release - Dotnet SDK installed for dotnet commands
- Running commands from the runtime folder
Linux
# Set $RunDir to the runtime directory
RunDir=`pwd`
# Set the OS, arch, and OSId
RunOS='linux'
RunOSId='linux'
RunArch='x64'
# Create mono dotnet
mkdir -p $RunDir/artifacts/dotnet-mono
$RunDir/build.sh -subset libs.pretest -configuration release -ci -arch $RunArch -testscope innerloop /p:RuntimeArtifactsPath=$RunDir/artifacts/bin/mono/$RunOS.$RunArch.Release /p:RuntimeFlavor=mono
cp $RunDir/artifacts/bin/runtime/net8.0-$RunOS-Release-$RunArch/* $RunDir/artifacts/bin/testhost/net8.0-$RunOS-Release-$RunArch/shared/Microsoft.NETCore.App/8.0.0 -rf
cp $RunDir/artifacts/bin/testhost/net8.0-$RunOS-Release-$RunArch/* $RunDir/artifacts/dotnet-mono -r
cp $RunDir/artifacts/bin/coreclr/$RunOS.$RunArch.Release/corerun $RunDir/artifacts/dotnet-mono/shared/Microsoft.NETCore.App/8.0.0/corerun
# Create Core Root
$RunDir/src/tests/build.sh release $RunArch generatelayoutonly /p:LibrariesConfiguration=Release
# Clone performance
git clone --branch main --depth 1 --quiet https://github.com/dotnet/performance.git $RunDir/performance
# Use Interpreter
export MONO_ENV_OPTIONS="--interpreter"
# One line run:
python3 $RunDir/performance/scripts/benchmarks_ci.py --csproj $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --incremental no --architecture $RunArch -f net8.0 --filter 'System.Numerics.Tests.Perf_Matrix4x4*' --bdn-artifacts $RunDir/artifacts/BenchmarkDotNet.Artifacts --bdn-arguments="--anyCategories Libraries Runtime --category-exclusion-filter NoInterpreter NoMono --logBuildOutput --generateBinLog --corerun $RunDir/artifacts/dotnet-mono/shared/Microsoft.NETCore.App/8.0.0/corerun"
# Individual Commands:
# Restore
dotnet restore $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --packages $RunDir/performance/artifacts/packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1
# Build
dotnet build $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore /p:NuGetPackageRoot=$RunDir/performance/artifacts/packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1
# Run
dotnet run --project $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore --no-build -- --filter 'System.Numerics.Tests.Perf_Matrix4x4*' --anyCategories Libraries Runtime " --category-exclusion-filter NoInterpreter NoMono --logBuildOutput --generateBinLog --corerun $RunDir/artifacts/dotnet-mono/shared/Microsoft.NETCore.App/8.0.0/corerun --artifacts $RunDir/artifacts/BenchmarkDotNet.Artifacts --packages $RunDir/performance/artifacts/packagesWindows
# Set $RunDir to the runtime directory
$RunDir="FullPathHere"
# Set the OS, arch, and OSId
RunOS='windows'
RunOSId='win'
RunArch='x64'
# Create mono dotnet
mkdir -p $RunDir/artifacts/dotnet-mono
$RunDir/build.sh -subset libs.pretest -configuration release -ci -arch $RunArch -testscope innerloop /p:RuntimeArtifactsPath=$RunDir\artifacts\bin\mono\$RunOS.$RunArch.Release /p:RuntimeFlavor=mono
xcopy $RunDir\artifacts\bin\runtime\net8.0-$RunOS-Release-$RunArch\ $RunDir\artifacts\bin\testhost\net8.0-$RunOS-Release-$RunArch\shared\Microsoft.NETCore.App\8.0.0\ /e /y
xcopy $RunDir\artifacts\bin\testhost\net8.0-$RunOS-Release-$RunArch\ $RunDir\artifacts\dotnet-mono\ /e /y
xcopy $RunDir\artifacts\bin\coreclr\$RunOS.$RunArch.Release\corerun $RunDir\artifacts\dotnet-mono\shared\Microsoft.NETCore.App\8.0.0\corerun /y
# Create Core Root
$RunDir\src\tests\build.cmd release $RunArch generatelayoutonly /p:LibrariesConfiguration=Release
# Clone performance
git clone --branch main --depth 1 --quiet https://github.com/dotnet/performance.git $RunDir\performance
# Use Interpreter
export MONO_ENV_OPTIONS="--interpreter"
# One line run:
python3 $RunDir\performance\scripts\benchmarks_ci.py --csproj $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --incremental no --architecture $RunArch -f net8.0 --filter 'System.Numerics.Tests.Perf_Matrix4x4*' --bdn-artifacts $RunDir\artifacts\BenchmarkDotNet.Artifacts --bdn-arguments="--anyCategories Libraries Runtime --category-exclusion-filter NoInterpreter NoMono --logBuildOutput --generateBinLog --corerun $RunDir\artifacts\dotnet-mono\shared\Microsoft.NETCore.App\8.0.0\corerun.exe"
# Individual Commands:
# Restore
dotnet restore $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --packages $RunDir\performance\artifacts\packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1
# Build
dotnet build $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore /p:NuGetPackageRoot=$RunDir\performance\artifacts\packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1
# Run
dotnet run --project $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore --no-build -- --filter 'System.Numerics.Tests.Perf_Matrix4x4*' --anyCategories Libraries Runtime " --category-exclusion-filter NoInterpreter NoMono --logBuildOutput --generateBinLog --corerun $RunDir\artifacts\dotnet-mono\shared\Microsoft.NETCore.App\8.0.0\corerun.exe --artifacts $RunDir\artifacts\BenchmarkDotNet.Artifacts --packages $RunDir\performance\artifacts\packagesPayloads

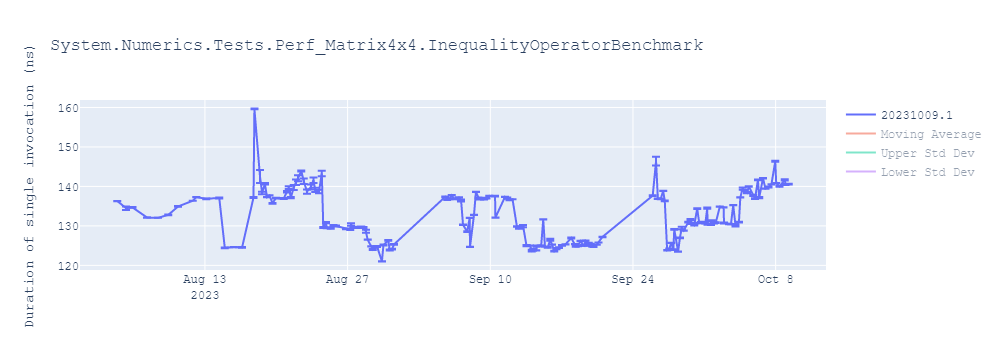

System.Numerics.Tests.Perf_Matrix4x4.InequalityOperatorBenchmark
ETL Files
Histogram
Description of detection logic
IsRegressionBase: Marked as regression because the compare was 5% greater than the baseline, and the value was not too small.
IsRegressionChecked: Marked as regression because the three check build points were 0.05 greater than the baseline.
IsImprovementBase: Marked as not an improvement because the compare was not 5% less than the baseline, or the value was too small.
IsRegressionBase: Marked as regression because the compare was 5% greater than the baseline, and the value was not too small.
IsRegressionChecked: Marked as regression because the three check build points were 0.05 greater than the baseline.
IsRegressionWindowed: Marked as regression because 146.29282862960093 > 137.3835069445814.
IsChangePoint: Marked as a change because one of 8/24/2023 11:06:19 AM, 10/4/2023 9:32:56 AM, 10/9/2023 8:09:24 PM falls between 10/1/2023 7:44:15 AM and 10/9/2023 8:09:24 PM.
IsRegressionStdDev: Marked as regression because -12.854755513036912 (T) = (0 -140.50179223258922) / Math.Sqrt((3.874138963801173 / (26)) + (6.698041515518933 / (18))) is less than -2.0180817028167235 = MathNet.Numerics.Distributions.StudentT.InvCDF(0, 1, (26) + (18) - 2, .025) and -0.07071720599301097 = (131.2221298454658 - 140.50179223258922) / 131.2221298454658 is less than -0.05.
IsImprovementBase: Marked as not an improvement because the compare was not 5% less than the baseline, or the value was too small.
IsChangeEdgeDetector: Marked not as a regression because Edge Detector said so.
JIT Disasms
System.Numerics.Tests.Perf_Matrix4x4.IsIdentityBenchmark
ETL Files
Histogram
Description of detection logic
IsRegressionBase: Marked as regression because the compare was 5% greater than the baseline, and the value was not too small.
IsRegressionChecked: Marked as regression because the three check build points were 0.05 greater than the baseline.
IsImprovementBase: Marked as not an improvement because the compare was not 5% less than the baseline, or the value was too small.
IsRegressionBase: Marked as regression because the compare was 5% greater than the baseline, and the value was not too small.
IsRegressionChecked: Marked as regression because the three check build points were 0.05 greater than the baseline.
IsRegressionWindowed: Marked as regression because 83.9147895253744 > 81.99141930558272.
IsChangePoint: Marked as a change because one of 8/24/2023 11:06:19 AM, 8/30/2023 12:22:41 PM, 9/11/2023 3:39:38 PM, 10/4/2023 9:32:56 AM, 10/9/2023 8:09:24 PM falls between 10/1/2023 7:44:15 AM and 10/9/2023 8:09:24 PM.
IsRegressionStdDev: Marked as regression because -34.933330868267056 (T) = (0 -84.19190280521998) / Math.Sqrt((0.3873513762611378 / (26)) + (0.26698795889075444 / (18))) is less than -2.0180817028167235 = MathNet.Numerics.Distributions.StudentT.InvCDF(0, 1, (26) + (18) - 2, .025) and -0.07705690799363579 = (78.16848133127378 - 84.19190280521998) / 78.16848133127378 is less than -0.05.
IsImprovementBase: Marked as not an improvement because the compare was not 5% less than the baseline, or the value was too small.
IsChangeEdgeDetector: Marked not as a regression because Edge Detector said so.
JIT Disasms
System.Numerics.Tests.Perf_Matrix4x4.EqualityOperatorBenchmark
ETL Files
Histogram
Description of detection logic
IsRegressionBase: Marked as regression because the compare was 5% greater than the baseline, and the value was not too small.
IsRegressionChecked: Marked as regression because the three check build points were 0.05 greater than the baseline.
IsImprovementBase: Marked as not an improvement because the compare was not 5% less than the baseline, or the value was too small.
IsRegressionBase: Marked as regression because the compare was 5% greater than the baseline, and the value was not too small.
IsRegressionChecked: Marked as regression because the three check build points were 0.05 greater than the baseline.
IsRegressionWindowed: Marked as regression because 123.77472903838171 > 121.07273808169751.
IsChangePoint: Marked as a change because one of 9/12/2023 2:43:35 PM, 10/4/2023 9:32:56 AM, 10/9/2023 8:09:24 PM falls between 10/1/2023 7:44:15 AM and 10/9/2023 8:09:24 PM.
IsRegressionStdDev: Marked as regression because -8.855402192129462 (T) = (0 -123.55360659553399) / Math.Sqrt((14.949803490023276 / (26)) + (4.243931398028486 / (18))) is less than -2.0180817028167235 = MathNet.Numerics.Distributions.StudentT.InvCDF(0, 1, (26) + (18) - 2, .025) and -0.06898800206485327 = (115.57997503889501 - 123.55360659553399) / 115.57997503889501 is less than -0.05.
IsImprovementBase: Marked as not an improvement because the compare was not 5% less than the baseline, or the value was too small.
IsChangeEdgeDetector: Marked not as a regression because Edge Detector said so.
JIT Disasms
