Deleting cross-platform images leaves the deleted image in an unknown state

[agross]

Bug description

When the registry contains cross-platform images that are deleted via the UI, it leaves an undeletable image.

How to Reproduce

For UI bug, steps to reproduce the behavior:

1. docker login to your registry
2. Create a builder: docker buildx create --use
3. Build a cross-platform busybox image:

   echo 'FROM busybox' | docker buildx build --platform linux/amd64,linux/arm64 \
                                             --tag your-registry.example.com/testing:1 \
                                             --push -

4. Open the registry UI and delete testing:1

UI config:

      SINGLE_REGISTRY: 'true'
      DELETE_IMAGES: 'true'
      NGINX_PROXY_PASS_URL: http://registry:5000
      REGISTRY_URL: https://your-registry.example.com

Registry config:

      REGISTRY_STORAGE_DELETE_ENABLED: 'true'

Expected behavior

The deleted image should no longer be visible.

Screenshots

System information

• OS: docker
• Docker registry UI:

  • Version: 2.1.0

  • Server: docker

  • Docker version: Docker version 20.10.12, build e91ed57

  • Docker registry ui tag: latest

  • OS/Arch: linux/amd64

  • Tools: docker-compose

Additional context

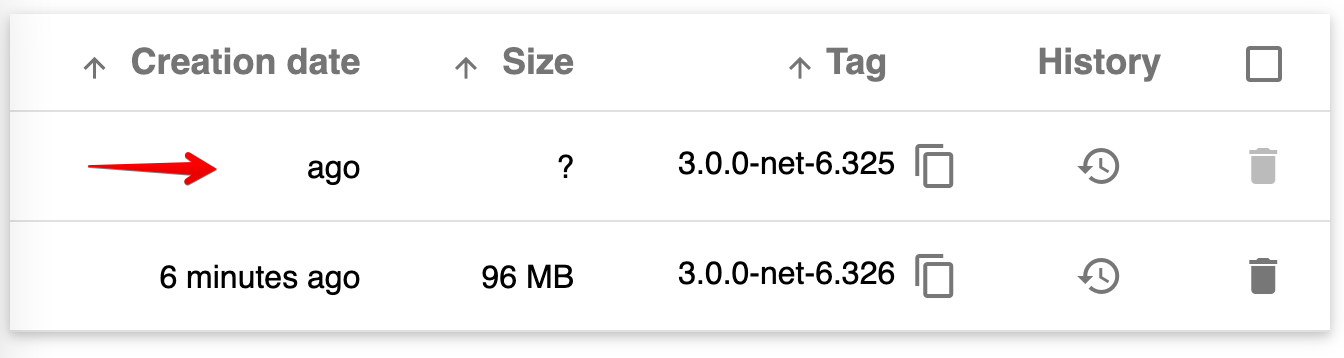

In the case of the screenshot above, the registry still contains the deleted image's tag:

$ docker container exec -it docker-registry_registry_1 ls /var/lib/registry/docker/registry/v2/repositories/gw/feedback/_manifests/tags
3.0.0-net-6.325  3.0.0-net-6.326

[Joxit]

Hi, thank you for using my project 😄

Issue confirmed, I should use the content digest from a request with application/vnd.docker.distribution.manifest.list.v2+json activated (same request as the history page)

[Joxit]

Hi there, this issue should be fixed with 7c08746
The fix will be first available on main tag. I will try to release the next version ASAP. Stay tuned 😉
