Implement box style

[dieghernan]

Hi,

This PR closes #18 implementing the "box" style proposed by @angela-li

After the PR, this can be done:

library(classInt)
sample <- rnorm(5000)
df <- data.frame(x = 1:length(sample), y = sample)
br <- classIntervals(sample, style = "box")


br
#> style: box
#>    [-3.319337,-2.683653)   [-2.683653,-0.6577045) [-0.6577045,0.003491091)
#>                       18                     1232                     1250
#>   [0.003491091,0.692928)      [0.692928,2.718877)       [2.718877,3.86871]
#>                     1250                     1225                       25
library(ggplot2)

ggplot(df) +
  geom_point(aes(x, y), color = "grey70") +
  geom_hline(yintercept = br$brks, color = "blue", linetype = "dotted")

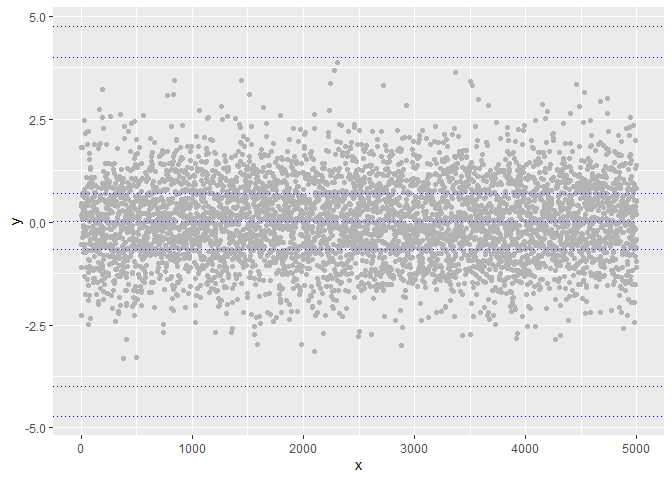

# Increase multiplicator

br2 <- classIntervals(sample, style = "box", iqr_mult = 3)
br2
#> style: box
#>           [-4.709602,-4)          [-4,-0.6577045) [-0.6577045,0.003491091)
#>                        0                     1250                     1250
#>   [0.003491091,0.692928)             [0.692928,4)             [4,4.744825]
#>                     1250                     1250                        0

ggplot(df) +
  geom_point(aes(x, y), color = "grey70") +
  geom_hline(yintercept = br2$brks, color = "blue", linetype = "dotted")

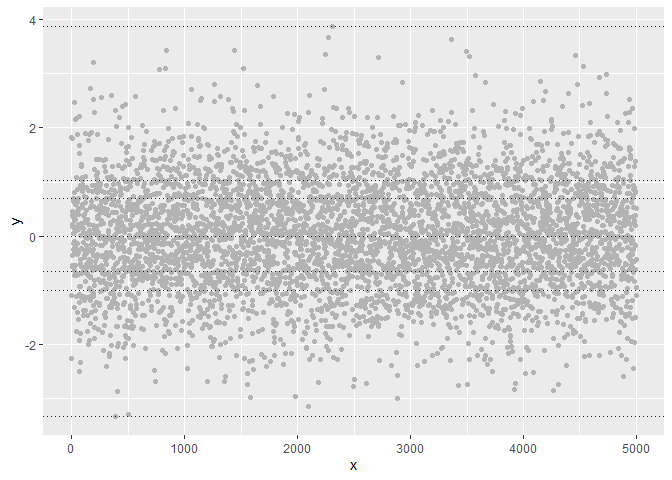

# Reduce multiplier

br3 <- classIntervals(sample, style = "box", iqr_mult = 0.25)
br3
#> style: box
#>   [-3.319337,-0.9953626)  [-0.9953626,-0.6577045) [-0.6577045,0.003491091)
#>                      776                      474                     1250
#>   [0.003491091,0.692928)      [0.692928,1.030586)       [1.030586,3.86871]
#>                     1250                      479                      771


ggplot(df) +
  geom_point(aes(x, y), color = "grey70") +
  geom_hline(yintercept = br3$brks, color = "blue", linetype = "dotted")

^{Created on 2022-09-22 with reprex v2.0.2}

[dieghernan]

HI @rsbivand

I see an error on the check action (ubuntu-20.04(devel)) but I don't think it is due to the PR, but of the configuration of the action itself (or any other action-related error). The error message states:

Error: Error in loadNamespace(x) : there is no package called ‘rcmdcheck’
Calls: loadNamespace -> withRestarts -> withOneRestart -> doWithOneRestart
Execution halted
Error: Process completed with exit code 1.

[rsbivand]

Very possibly the CI workflow has not been updated to Rtools42, I'll take a look when I can get to a computer.

[rsbivand]

CI workflow was updated, for some reason that instance is not finding rcmdcheck.

[rsbivand]

Local R CMD check passes for both R 4,2,1 and R-devel. Thanks for the contribution. I'll add something to NEWS. @angela-li may I add you as a package contributor?

[rsbivand]

Released on CRAN; Ubuntu devel problem caused by missing libcurl when installing curl needed by rcmdcheck.
